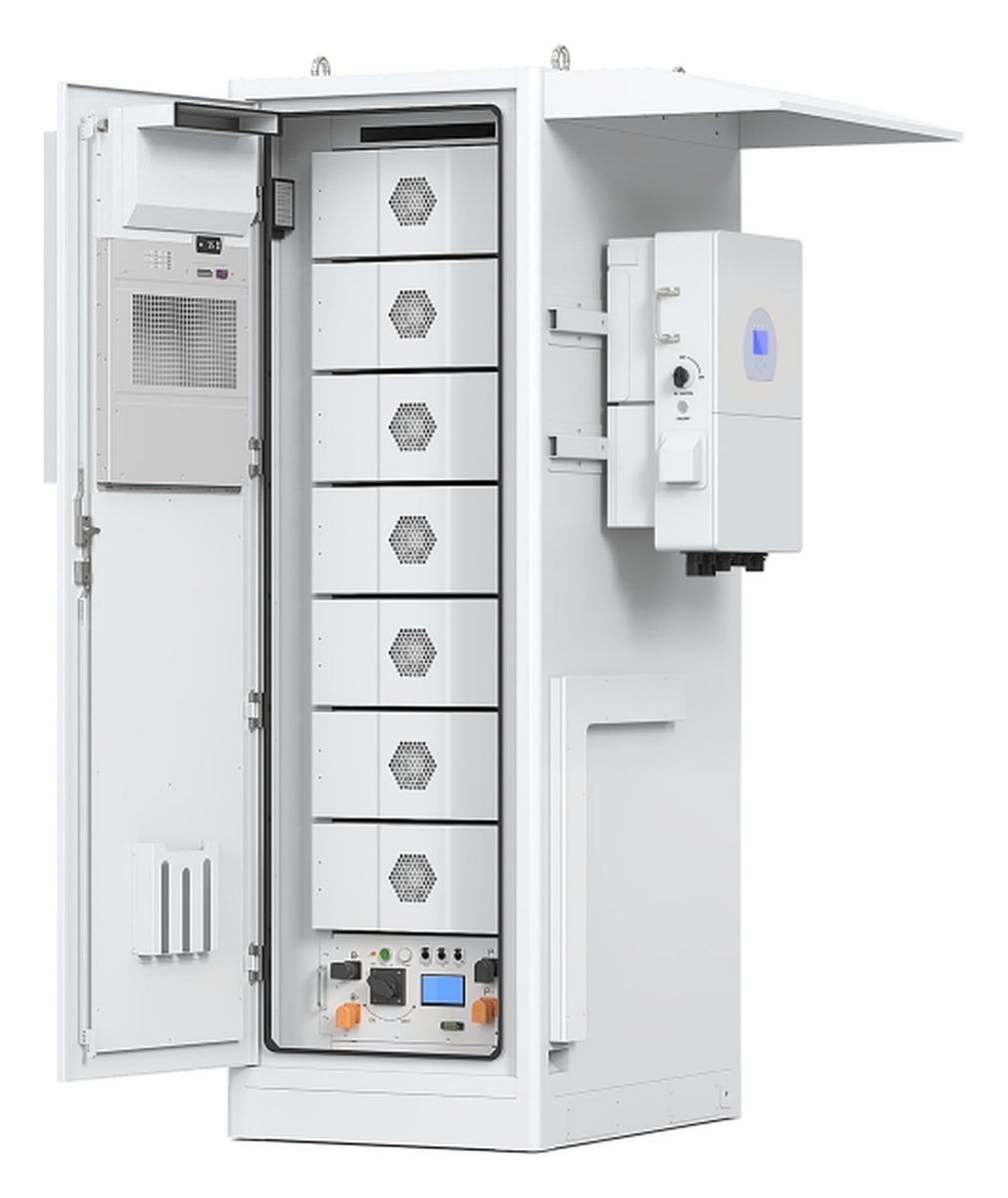

Industrial & Commercial Energy Storage Cabinet GCB-E100
- 100 kWh / 50 kW
- LFP 314/280Ah
- IP54
- Three-Phase
Send us your load list and we size it.
All-in-one 100 kWh / 50 kW outdoor energy storage cabinet with integrated PCS, fire protection and air-cooling. Designed for peak shaving, demand charge management and backup power on commercial sites.
Best for: Peak shaving, demand charge management and backup on commercial sites
Key Specifications
Battery Parameters
| Battery Type | LFP 314/280Ah |
|---|---|
| Battery Pack | 51.2V 314/280Ah |
| Rated Voltage | 358.4 V (7 module series) |
| Rated Energy | 112.53 kWh nominal (314 Ah pack) / 100.35 kWh nominal (280 Ah pack) |
| DOD | 95% |
| Cycle Life | 6000 cycles at 0.25C, 95% DOD, 25 °C |
| Voltage Range | 280 – 403 V |
Operational Parameters
| Rated Charge / Discharge Power | 50 kW |
|---|---|
| Integrated PCS | Three-phase hybrid, grid-tied |
| Grid Type | Three-Phase Four-Wire |
| Rated Grid Voltage | AC 380 V |
| Applicable Grid Frequency | 50 Hz |
| Rated Current | 76 A |
| Current Harmonic Distortion | <3% |
| Power Factor Range | 1 (leading) ~ 1 (lagging) |
| Operating Temperature Range | -20 ~ 50 ℃ |
| Relative Humidity | 0 – 95% |
| Altitude | <2000 m |
| Cooling Method | Air cooling (refrigeration, ventilation, heating) |
| Noise | ≤75 dB |
System Parameters
| System Efficiency | ≥90% |
|---|---|
| Fire Protection System | Integrated |
| Messaging | RS485 / CAN |
| Ingress Protection | IP54 |
| Dimension (W×D×H) | 1200 × 803 × 2375 mm |
| Weight | 1300 kg |
Where It Fits
- Factories and campuses managing a demand charge
- Sites with a sharp morning or evening peak
- Backup for a line that cannot drop
- PV self-consumption on a commercial roof
Compatible Equipment
Three-phase four-wire AC 380 V at 50 Hz, RS485 / CAN, Modbus TCP/IP to a site SCADA.
