SiRay Energy
Low Voltage Batteries (51.2 V)
Five 51.2 V LiFePO4 modules for homes and light commercial sites. 51.2 V is the voltage most hybrid inverters expect, which is why these pair with existing hardware instead of replacing it.
The Low Voltage Battery Range
Scroll the table sideways to see every column.
| Model | Energy | Ah | Install | Notes |
|---|---|---|---|---|

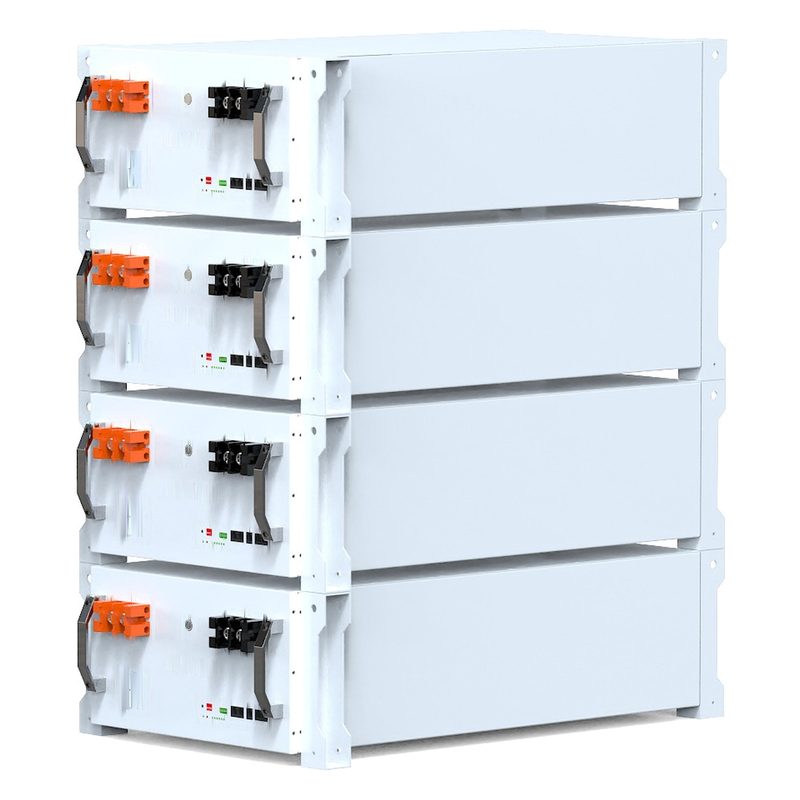

| GLR-100 | 5.12 kWh | 100 Ah | rack / wall / stand | 133 mm slim module |
| GLW-200 | 10.49 kWh | 200 Ah | wall | compact wall case |
| GLM-314 | 16.08 kWh | 314 Ah | floor-standing | 127 kg, LED and LCD display |
| GLR-200 | 10.49 kWh per module | 205 Ah | stackable, 2-16 | 21-168 kWh |
| GLR-314 | 16.08 kWh per module | 314 Ah | stackable, 2-16 | 32.15-257.22 kWh |
51.2 V LiFePO4 Battery Modules
Sixteen LiFePO4 cells in series. 51.2 V sits inside the MPPT window of most residential hybrid inverters, keeps current low enough for 150 A breakers, and stays under the 60 V DC extra-low-voltage limit that simplifies installation.
Modular Battery Storage: Stack, Then Stack Again
GLR modules add capacity in 10.49 or 16.08 kWh steps. Two modules fill a cupboard; sixteen fill a garage wall. The BMS recognises the new modules over the same RS485 / CAN bus.
Monitoring
RS485 / RS232 / CAN to the inverter, plus WiFi and Bluetooth to a phone app on GLR-100, GLW-200 and GLM-314. GLM-314 adds an LED bar and an LCD on the case.
Request a Quote
Common Questions
How many cycles does a LiFePO4 home battery last?
SiRay residential battery modules are rated for more than 6000 cycles at 0.5C, 90% depth of discharge and 25 ℃, with a 15-year design life. The SNE-ES F30 and SNE-ES F32 use an 8000-cycle cell. The GLC-261 liquid-cooled cabinet is rated 8000 cycles to 70% end of life.
Can I add more battery capacity later?
Yes, if you choose a stackable model. SiRay GLR-200 and GLR-314 accept 2 to 16 modules, taking the bank from 21 kWh to 168 kWh (GLR-200) or from 32.15 kWh to 257.22 kWh (GLR-314) without changing the footprint. High-voltage GHR and GHS strings accept 3 to 15 modules. The SNE-ES wall units parallel up to 16 units for 81.6 or 168 kWh.
Which inverters work with SiRay low-voltage batteries?
SiRay 51.2 V low-voltage modules communicate over RS485, RS232 and CAN and are matched to Growatt, Solis, GoodWe, Sol-Ark, SRNE and DEYE inverters. SiRay recommends confirming the specific inverter model before ordering.
Low Voltage Batteries Models Compared
Scroll the table sideways to see every column.
| Model | Rated energy | Voltage | Max power | Cycle life | IP rating | Dimensions (mm) | Weight | Communication |
|---|---|---|---|---|---|---|---|---|
| GLM-314 | 314 Ah | 51.2 V | — | >6000 (0.5C @25℃, 90% DOD) (design life 15 years) | — | 503 × 233 × 880 mm | 127 kg | RS485 / RS232 / CAN |
| GLW-200 | 200 Ah | 51.2 V | — | >6000 (0.5C @25℃, 90% DOD) (design life 15 years) | — | 453 × 228 × 750 mm | 90.6 kg | RS485 / RS232 / CAN |
| GLR-314 | 314 Ah | 51.2 V | — | >6000 (0.5C @25℃, 90% DOD) (design life 15 years) | IP20 | 838.5 × 478 × 278 mm per module | 125.8 kg per module | RS485 / RS232 / CAN |
| GLR-200 | 205 Ah | 51.2 V | — | >6000 (0.5C @25℃, 90% DOD) (design life 15 years) | IP20 | 675.8 × 478 × 278 mm per module | 95.8 kg per module | RS485 / RS232 / CAN |
| GLR-100 | 100 Ah | 51.2 V | — | >6000 (0.5C @25℃, 90% DOD) (design life 15 years) | — | 440 × 440 × 133 mm | 48 kg | RS485 / RS232 / CAN |
