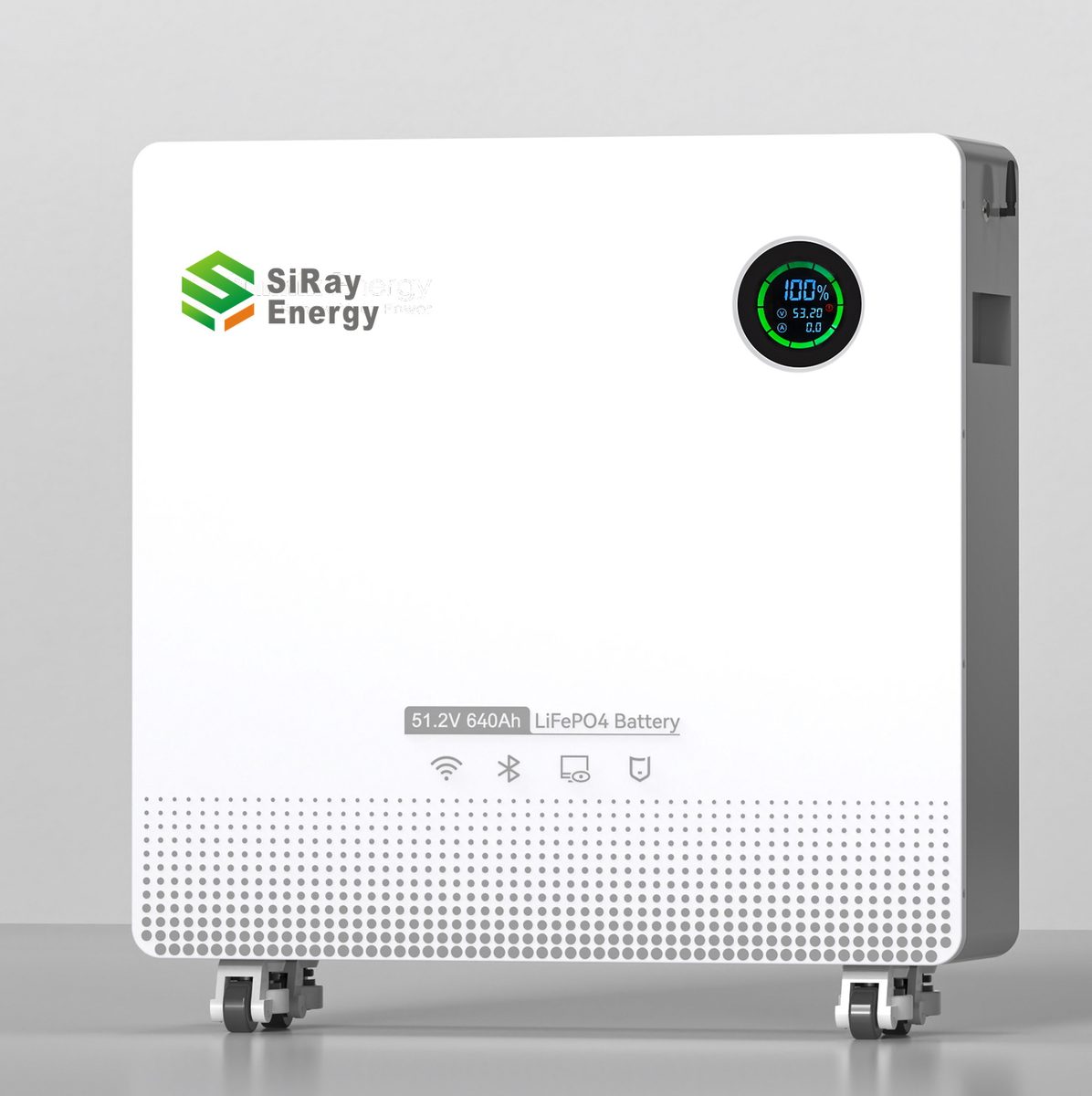

Free Stand LiFePO4 Battery SNE-ES F32
- 32.8 kWh
- 51.2 V
- LiFePO4
- Free Stand
Send us your load list and we size it.
The largest cabinet in the low-voltage range: 32.8 kWh with an 8,000-cycle cell at 70% end-of-life. The same castor-mounted footprint and 63-unit scalability as the F30, for installations that need a little more headroom.
Best for: Installations that need extra headroom on the same floor footprint
Key Specifications
Battery Parameters
| Battery Type | 51.2 V 640 Ah LiFePO4 |
|---|---|
| Nominal Energy | 32.8 kWh |
| Usable Energy | 29.5 kWh |
Operational Parameters
| Peak Output Power (10 s) | 15.4 kW |
|---|---|
| Round-Trip Efficiency | >97.5% |
| Nominal / Operating Voltage | 51.2 V / 44 – 58.4 V |
| Max Charge / Discharge Current | 200 / 200 A |
| Communication | CAN, RS485 |
| Ingress Protection | IP21 |
| Operating Temperature | -20 ~ 60 ℃ |
| Cooling Method | Natural Cooling |
| Installation | Free Stand, Indoor |
System Parameters
| Cycle Life | >8,000 (90% DOD / 25 ℃ / 0.5C) |
|---|---|
| Design Life | 20+ Years (25 ℃ @77 ℉) |
| Recommended DOD | 90% |
| Dimension (W×H×D) | 815 × 870 × 250 mm |
| Weight | 232 kg |
| Humidity / Altitude | 5% – 85% / <2000 m |
Certification
| Warranty | 5 Years |
|---|---|
| Safety Standard | UL 1973 / IEC 62619 / UN38.3 |
| Scalability | Max 63 pcs in parallel |
Where It Fits
- Homes that want to cut daytime grid import
- Homes with night-time autonomy requirements
- Off-grid houses with no utility connection
- Small commercial sites with a single-phase or three-phase board
Compatible Equipment
GHA towers need no external inverter. SNE-ES wall and free-standing units pair with Growatt, Solis, GoodWe, Sol-Ark, SRNE and DEYE hybrid inverters over RS485 / CAN.
