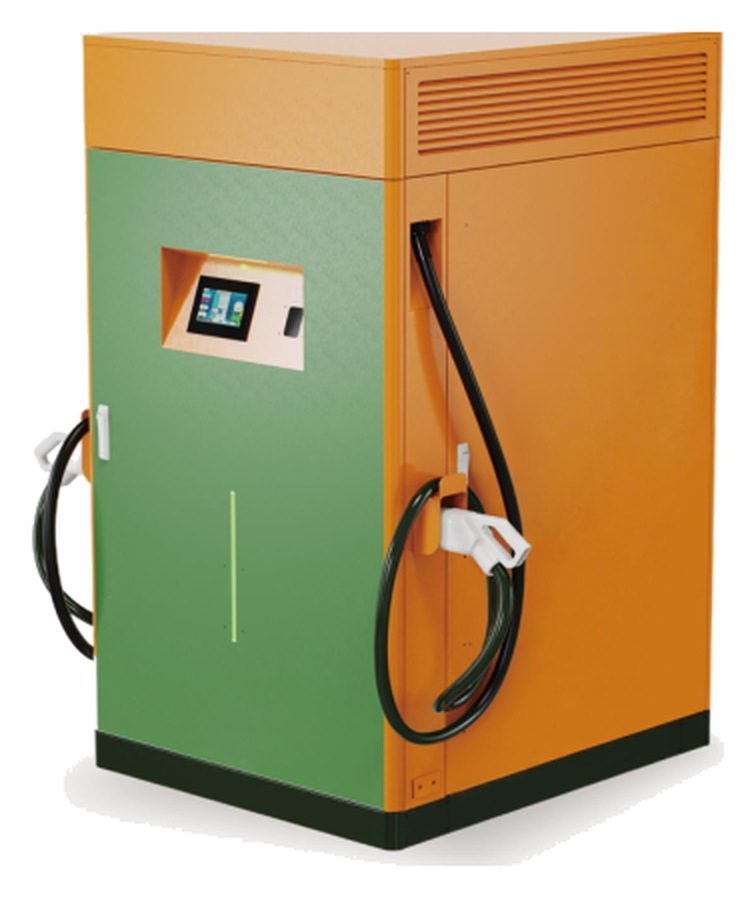

Ground-Mounted Storage EV Charger F200120
- 200 kWh
- 120 kW
- PV Input
- Ground-Mount
Send us your load list and we size it.
A permanent 200 kWh charging station with optional solar input — a solar-storage-charging point with minimal grid reinforcement, subject to site conditions.
Best for: Permanent solar-storage-charging point, minimal grid reinforcement
Key Specifications
Battery System
| Battery Capacity | 200 kWh |
|---|---|
| Cycle Life | ≥6000 cycles (80% DOD) |
Input & Recharge
| Solar Input | Optional PV input |
|---|---|
| DC Recharge | EV DC charger |
| AC Recharge | Three-phase AC, 40 kW |
Charging Output
| Total Output Power | 120 kW (2 guns) |
|---|---|
| Output Voltage | 200 – 1000 V DC |
| Output Current | 0 – 250 A |
| Charging Gun | GB/T / CCS1 / CCS2 / CHAdeMO |
| Cable Length | 7 m |
System & Enclosure
| Charge Mode | Single player / OCPP 1.6J |
|---|---|
| Display | 10-inch touch screen |
| Working Temperature | -10 ~ 60 °C |
| IP Rating | IP54 |
| Dimension | 1100 × 1300 × 2000 mm |
| Weight | ≈2680 kg |
Where It Fits
- Depots and car parks with a limited supply
- Sites that want to avoid a transformer upgrade
- Public points that need card or RFID payment
- Locations where trenching is impractical
Compatible Equipment

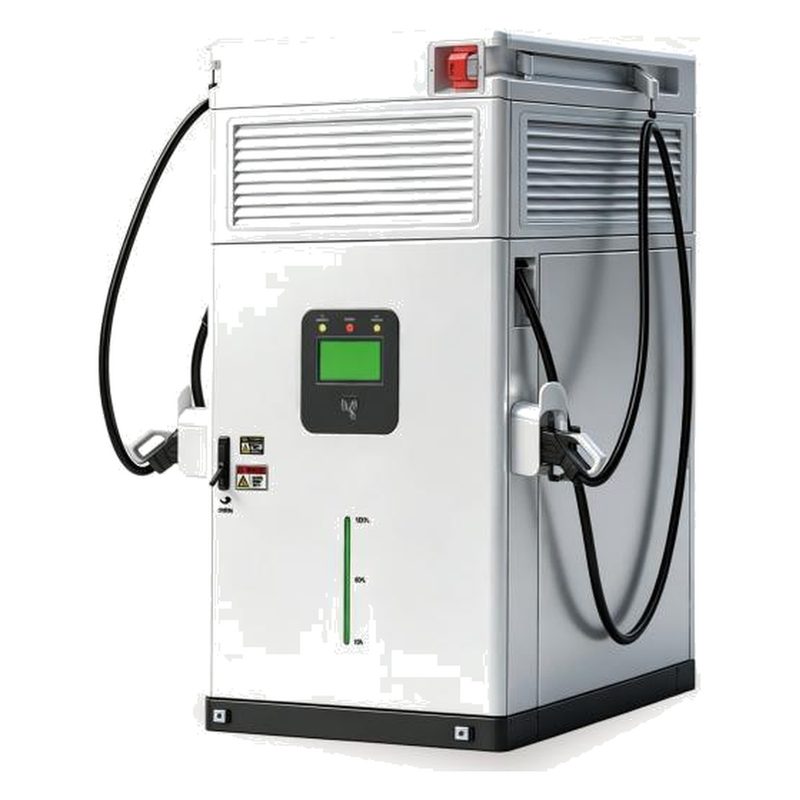

GB/T, CCS1, CCS2 or CHAdeMO connectors, OCPP 1.6J, optional PV input, RFID and card payment on the EV208-120.
