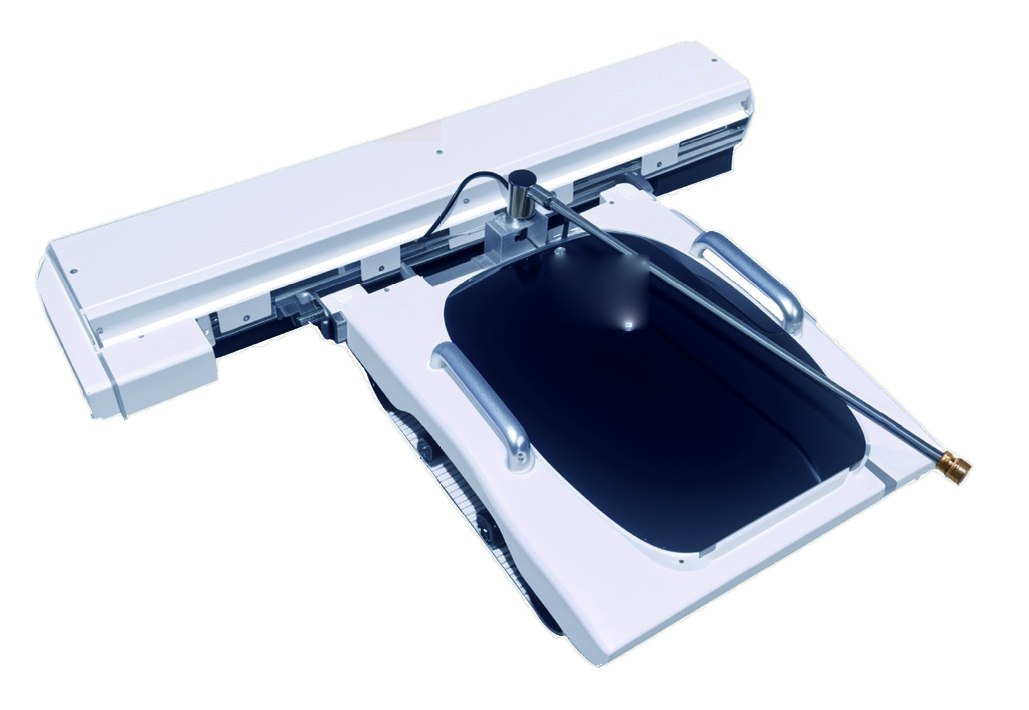

Remote-Operated PV Cleaning Robot SR103
- 2000 m²/h
- 20° Gradeability
- IP65
- 300 m Remote
Send us your load list and we size it.
The SR103 is the fastest single-brush machine in the range: 2000 m²/h and 1.5-2 MW cleaned in a day, with third-generation track drive that holds a line up to 20 degrees. It is the version to specify when the plant sits on a hillside and every row climbed is money back.
Best for: Sloped and hilly arrays up to 20 degrees where panel throughput matters more than autonomy
Key Specifications
Physical Parameters
| Machine Dimension (L×W×H) | 658 × 600 × 264 mm |
|---|---|
| Total Machine Weight | 33.5 kg |
| Machine Weight | 19 kg (without battery) |
| Roller Brush Dimension (L×W×H) | 1215 × 343 × 174 mm |
| Roller Brush Weight | 9 kg (1.2 m wide) |
| Number of Brush Head | 1 |
| Battery Weight | 5.5 kg |
Performance Parameters
| Cleaning Efficiency | 2000 m²/h |
|---|---|
| Daily Cleaning Capacity | 1.5~2 MW/day |
| Cleaning Method | 3rd-Gen TriClean three-in-one module (high-pressure spray + high-speed roller brush + dual squeegees), wet and dry use |
| Roller Brush Rotation Speed | 300 r/min |
| Motor Power | 120 W pure copper brushless |
| Battery Capacity | 50 Ah |
| Battery Operating Voltage | 24 V |
| Battery Energy | 1200 Wh |
| Charging Time | 5H |
| Battery Endurance | 8H |
| Max. Remote Control Distance | 300 m |
| Remote Controller Working Time | 15h |
| Full Charging Time for Remote Controller | approx. 6h |
| Cruise Speed Steps | 10 speed steps, single-hand control |
| Travelling System | 3rd-Gen TriTrack |
| Anti-Fall Protection | 3rd-Gen QuadSafe with edge-triggered emergency stop and indicator light |
| Max. Horizontal Obstacle-Crossing Gap | 200 mm |
| Max. Vertical Obstacle-Crossing Height | 40 mm |
| Applicable Contaminants | dust, oil stains, bird droppings and similar soiling |
Environmental Adaptability
| Ingress Protection Rating | IP65 |
|---|---|
| Ambient Operating Temperature | -20~60 ℃ (wet cleaning unavailable at or below 0 ℃) |
| Max. Operating Inclination | ≤20° |
| Safe Operating Wind Speed | ≤13.9 m/s |
Warranty & Service
| Warranty Period | 1 year |
|---|---|
| Design Service Life of Machine | 6 years |
When to Choose This
The fastest of the single-brush machines. 2000 m²/h, 1.5-2 MW a day and third-generation track drive that holds a line to 20 degrees.
Choose SR103 when:
- The array is sloped and throughput decides the payback
- You want the highest cleaning rate without twin brushes
- Ground is up to 20 degrees with 200 mm gaps
Choose something else when:
| Need | Choose | Why |
|---|---|---|
| Ground steeper than 20 degrees | SR203 | 30 degrees, 400 mm gap |
| No operator on site | ASR102 | autonomous with charging station |
Where It Fits
- Utility-scale ground-mount plants on a fixed cleaning cycle
- Mountain and fishery-solar hybrid sites with sloped or steep arrays
- Commercial and industrial rooftop arrays, in dry sweeping mode
- Plants replacing manual washing crews and rope access
Compatible Equipment
PV modules on standard frames, a 100 m water supply for wet cleaning, 4G cellular coverage for the autonomous ASR102, and a prepared charging station pad for its unattended mode.
