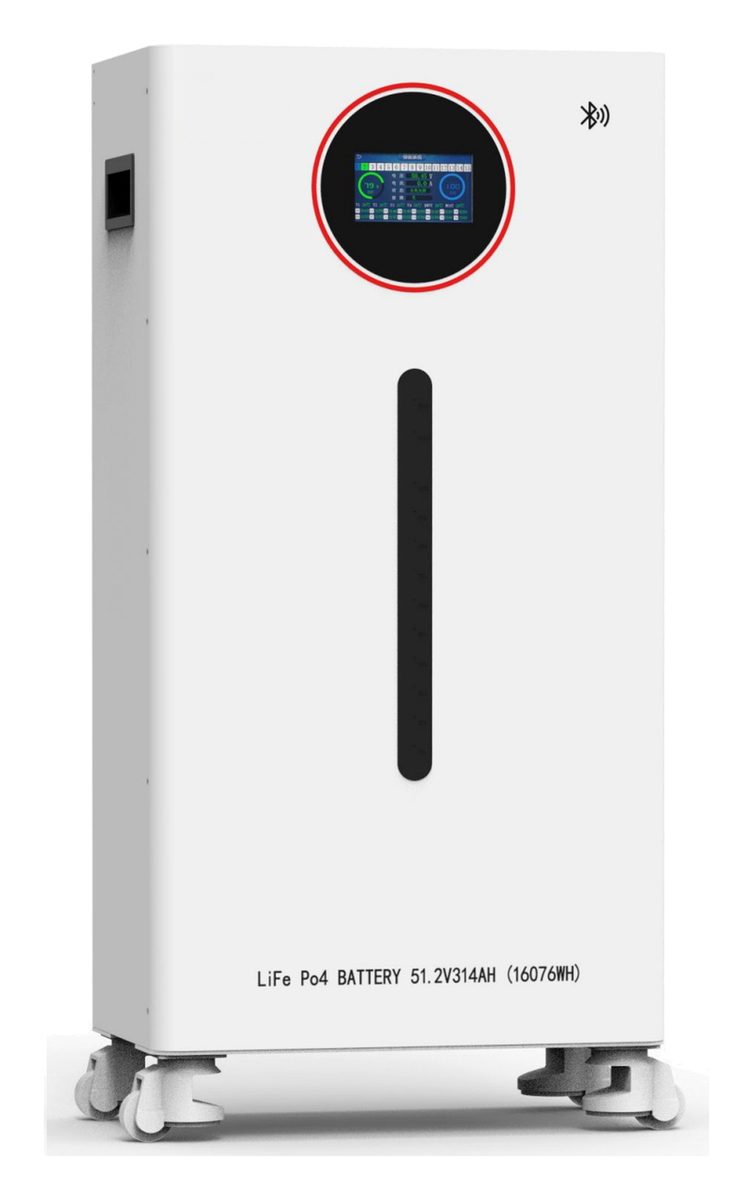

Low Voltage Battery GLM-314
- 16.08 kWh
- 51.2V 314Ah
- LiFePO4
- Floor-standing
Send us your load list and we size it.
Single-module low-voltage LiFePO4 battery, 16.08 kWh usable energy in one floor-standing enclosure, real-time BMS monitoring and a 15-year design lifespan for residential storage and light commercial backup.
Best for: Single-module residential storage and light commercial backup
Key Specifications
Battery Parameters
| Battery Type | 51.2V 314Ah LiFePO4 |
|---|---|
| Rated Voltage | 51.2 V |
| Rated Capacity | 314 Ah |
| Rated Energy | 16.08 kWh |
| Voltage Range | 44.8 – 57.6 V |
Operational Parameters
| Charge / Discharge Current | 157 / 157 A |
|---|---|
| Charging Temperature | 0 ~ 55 ℃ |
| Discharge Temperature | -20 ~ 60 ℃ |
| Storage Temperature | -10 ~ 40 ℃ |
System Parameters
| Port Communication | RS485 / RS232 / CAN |
|---|---|
| Display | LED + Liquid crystal |
| Wireless Communication | WiFi / Bluetooth |
| Compatible Inverters | Growatt / Solis / Goodwe / Sol-Ark / SRNE / DEYE |
| Cycle Life | >6000 (0.5C @25℃, 90% DOD) |
| Design Lifespan | 15 years |
| Dimension (L×W×H) | 503 × 233 × 880 mm |
| Weight | 127 kg |
Certification
| Certificates | CE / EMC |
|---|---|
| Transportation | UN38.3 |
Where It Fits
- Retrofits onto an existing 51.2 V hybrid inverter
- Homes adding capacity module by module
- Small commercial sites with a three-phase hybrid inverter
- Installations where wall, rack or floor space is the constraint
Compatible Equipment
Growatt, Solis, GoodWe, Sol-Ark, SRNE and DEYE hybrid inverters, over RS485 / RS232 / CAN.
