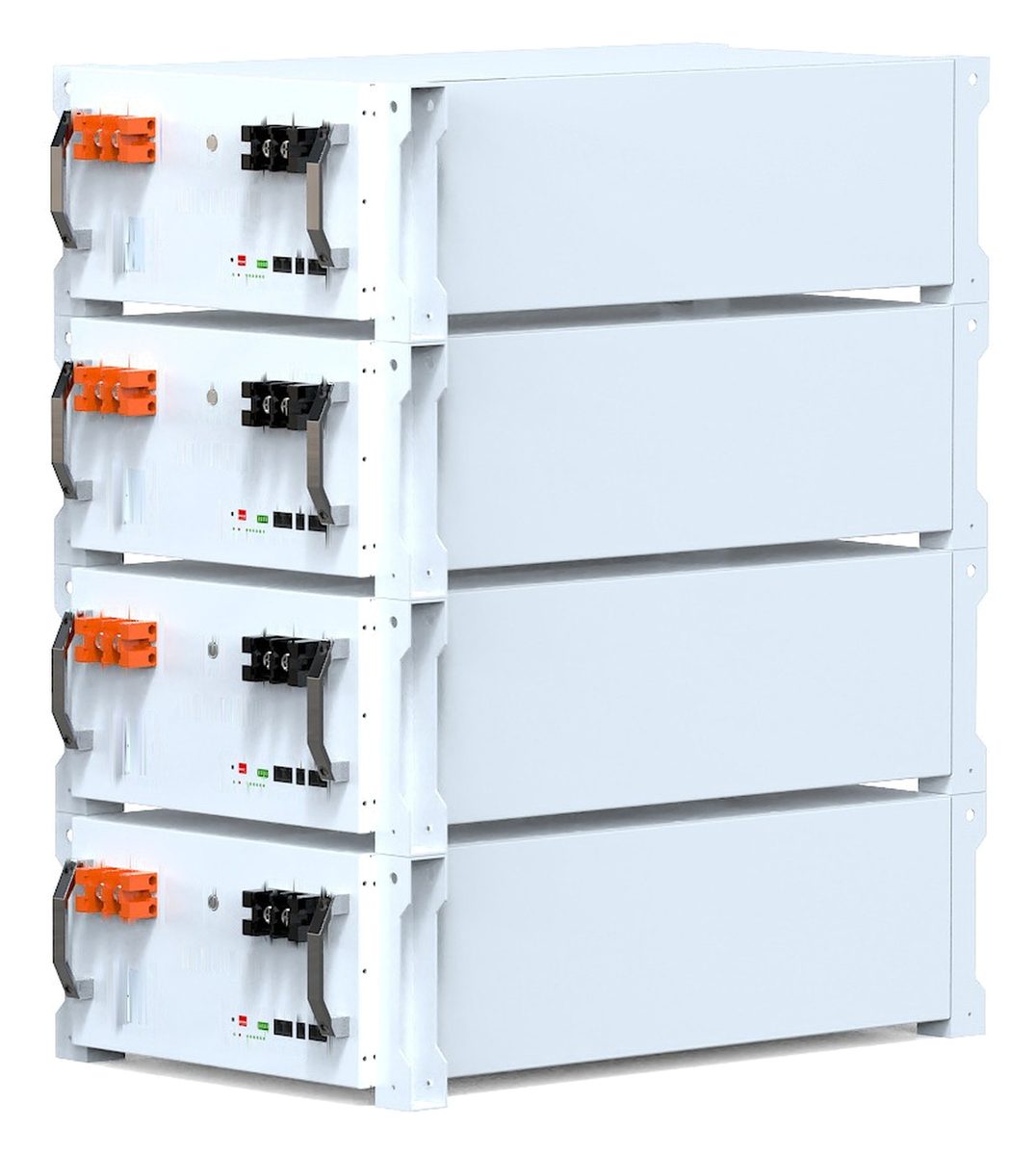

Slim Low Voltage Battery GLR-100
- 5.12 kWh
- 51.2V 100Ah
- LiFePO4
- Rack / Wall / Stand
Send us your load list and we size it.
Slim 5.12 kWh low-voltage LiFePO4 module at only 133 mm deep. Rack, wall-mounted or stand-mounted installation, WiFi and Bluetooth monitoring, and plug-and-play compatibility with major inverter brands.
Best for: Tight utility rooms and retrofit installs where depth is the constraint
Key Specifications
Battery Parameters
| Battery Type | 51.2V 100Ah LiFePO4 |
|---|---|
| Rated Voltage | 51.2 V |
| Rated Capacity | 100 Ah |
| Rated Energy | 5.12 kWh |
| Voltage Range | 44.8 – 57.6 V |
Operational Parameters
| Charge / Discharge Current | 50 / 50 A |
|---|---|
| Charging Temperature | 0 ~ 55 ℃ |
| Discharge Temperature | -20 ~ 60 ℃ |
| Storage Temperature | -10 ~ 40 ℃ |
System Parameters
| Port Communication | RS485 / RS232 / CAN |
|---|---|
| Wireless Communication | WiFi / Bluetooth |
| Installation Method | Rack / Wall-mounted / Stand-mounted |
| Compatible Inverters | Growatt / Solis / Goodwe / Sol-Ark / SRNE / DEYE |
| Cycle Life | >6000 (0.5C @25℃, 90% DOD) |
| Design Lifespan | 15 years |
| Dimension (L×W×H) | 440 × 440 × 133 mm |
| Weight | 48 kg |
Certification
| Certificates | CE / EMC |
|---|---|
| Transportation | UN38.3 |
Where It Fits
- Retrofits onto an existing 51.2 V hybrid inverter
- Homes adding capacity module by module
- Small commercial sites with a three-phase hybrid inverter
- Installations where wall, rack or floor space is the constraint
Compatible Equipment
Growatt, Solis, GoodWe, Sol-Ark, SRNE and DEYE hybrid inverters, over RS485 / RS232 / CAN.
